Vacuum Box

Product Introduction：

Hotline：+86-0754-88100095

Product Details

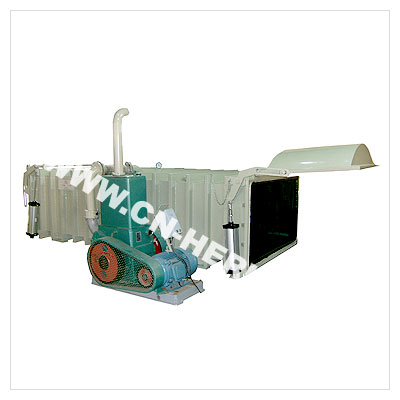

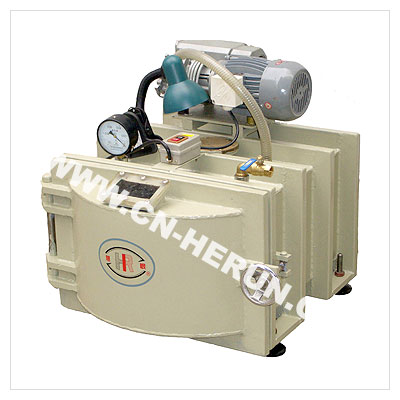

Vacuum Chest
The buddle will appear during the production of the artificial stone. Our company has solved the problem by adopting the technology of discharging the buddle from non-curdling artificial stone sheet on our vacuum chest in order to ensure the quality of the product and lower the production cost. The structure, material, hardness and tightness of the equipment are perfectly designed and the operation is easy which is one kind of high performance equipments.
1- The solid design and the adoption of the high-strength rectangle steel tube ensure the equipment can bear the 1PA pressure. And the equipment can be adjusted horizontally.
2- Adjustable elastic double-door ensures the air tightness.
3- Two sets of illuminating and observational hole together with the double air-venting valves are facilitating the operation.
4- The high-precision butterfly valve is adopted on the conjunction part between the vacuum pump and vacuum chest. And the conjunction tube is made of the corrugated pipe which is shock-proof and can bear the high pressure.
5- The vacuum power of the assistant vacuum pump is high and air-venting speed is fast which guarantee the process of air-venting within 2 minutes.
6- The size of chest can be customized.

Parameter：

Model	Power	Voltage	Inside Measurement	Ultimate vacuum	pumping speed	Vacuuming time	Weight

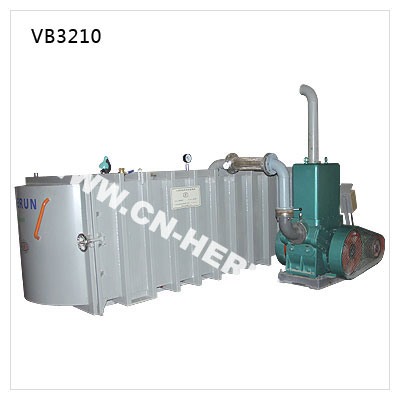

VB3210	15KW	380V	1×1×3.2(M)	8×10^-3Torr	150L/S	﹤2min	3T

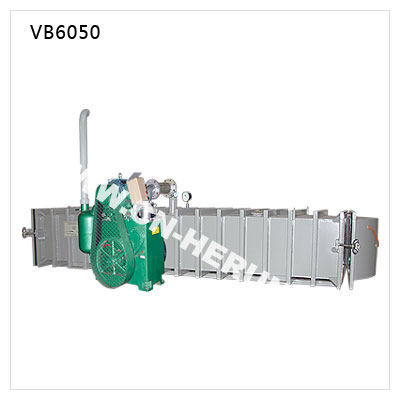

VB6050	15KW	380V	1.2×0.5×5(M)	8×10^-3Torr	150L/S	﹤2min	4T

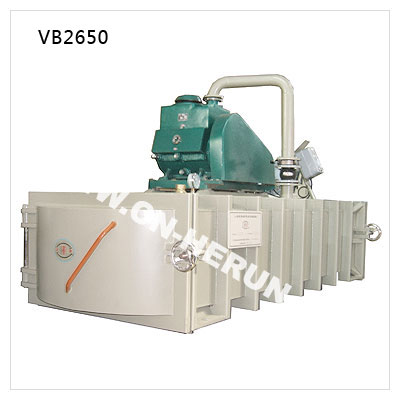

VB2650	5.5KW	380V	1×0.5×2.6(M)	4×10^-3Torr	70L/S	﹤2min	2T
